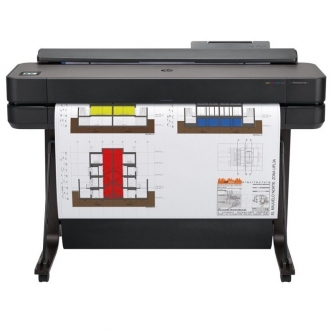

Brochure HP DesignJet T650 (PDF)
Extreme simplicity
Print multi-size A3 and A1 or A0 projects automatically, without manually switching the media source. Save time with the world's easiest job submission[2]—send multiple files in one click with HP Click.[3] Print with confidence you'll get the results you expect with an intuitive driver and true print preview.
Fits your office and budget
Save space with the world's smallest plotters[4] designed to fit your office, including a built-in stand. Use up to 95% less ink for routine maintenance vs competitor and get up to 100 extra A1 pages per month.[5] More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic.[6]
Fits the way you work
Avoid waiting by the printer with high-speed printing as fast as 25 seconds per A1 plot.[8] Be more productive—save time from job prep to final print by printing your projects up to 2x faster.[2] Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app. Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.[7]
Memory
1 GB
What's in the box
HP DesignJet T650 36-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Connectivity, standard
Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Print multi-size files in one click
Yes
Remote print enabled
Yes
Weight
35.4 kg
Package weight
56 kg
Minimum dimensions (W x D x H)
1317 x 605 x 932 mm
Package dimensions (W x D x H)
1470 x 575 x 590 mm
Power
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption
<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
Software included
HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
Manufacturer Warranty
One-year limited hardware warranty
Number of print cartridges
4 (C, M, Y, K)
Ink types
Dye-based (C, M, Y)
pigment-based (K)
Color(s) of printing supplies
Cyan, magenta, yellow, black
Ink drop
5.5 pl (C, M, Y)
12 pl (K)
Print cartridge volume delivered
80 ml (K)
38 ml (K)
29 ml (C, M, Y)
Print head nozzles
1376
Print heads
1 (cyan, magenta, yellow, black)
High capacity of page yield (colour)
20 ml of ink yields 101 A1/D pages, taking into account maintenance routines[2]
Functions
Internal Storage
None
Print technology
HP Thermal Inkjet
Print languages
HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Printer drivers included
Raster driver for Windows and macOS
Printing path
Print Anywhere with HP Smart app, HP Click, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint
Model size
914 mm
Model size
36 in
Line accuracy
±0.1%[3]
Theoretical minimum line width
0.02 mm
Theoretical minimum line width
0.0008 in
Print speed
25 sec/page on A1, 82 A1 prints per hour[1]
Print speed
25 sec/page on D, 82 D prints per hour[1]
Finished output handling
Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Non-printable area (cut-sheet)
5 x 5 x 5 x 17 mm (manual feed)
5 x 5 x 5 x 5 mm (input tray)
Non-printable area (cut-sheet)
0.2 x 0.2 x 0.2 x 0.7 in (manual feed)
0.2 x 0.2 x 0.2 x 0.2 in (input tray)
Non-printable area (roll media)
5 x 5 x 5 x 5 mm
Non-printable area (roll media)
0.2 x 0.2 x 0.2 x 0.2 in
Print quality color (best)
Up to 2400 x 1200 optimized dpi
Maximum optical density (black)
8 L* min/2.10 D[4]
Media sizes standard (metric rolls)
279 to 914 mm
Media sizes standard (sheets, rolls)
11 to 36 in
Roll external diameter
100 mm
Roll external diameter
3.9 in
Roll maximum input
1
Roll maximum weight
6.2 kg
Roll maximum weight
13.6 lb
Media thickness
Up to 11.8 mil
Media width, maximum
36 in
Supported Primary Applications
Line drawings
Presentations
Renderings
Recommended media
HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6]
HP Coated Paper (FSC® certified)[5] (recyclable)[6]
HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6]
Media sizes supported
Auto sheet feeder: A4, A3
manual feed: A4, A3, A2, A1, A0
Media sizes, custom
Auto sheet feeder: 210 x 279 to 330 x 482 mm
manual feed: 210 x 279 to 914 x 1897 mm
Media types
Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended
60 to 280 g/m² (roll/manual feed)
60 to 220 g/m² (auto sheet feeder)
Media width, maximum
914 mm
Media sizes, custom
Auto sheet feeder: 8.3 x 11 to 13 x 19 in
manual feed: 8.3 x 11 to 36 x 74.7 in
Media sizes supported
Auto sheet feeder: A, B
manual feed: A, B, C, D, E
Media thickness (metric)
Up to 0.3 mm
